NEWMAK4 Carbon Fiber 5-inch 6-inch 7-inch Freestyle Drone Frame Kit
● Smooth Flight.
● H-Shape Structure.
● High-Quality Craftsmanship.
● With 3D Printed Parts.
● Three Size Optional.
● Smooth Flight.
● H-Shape Structure.
● High-Quality Craftsmanship.
● With 3D Printed Parts.
● Three Size Optional.

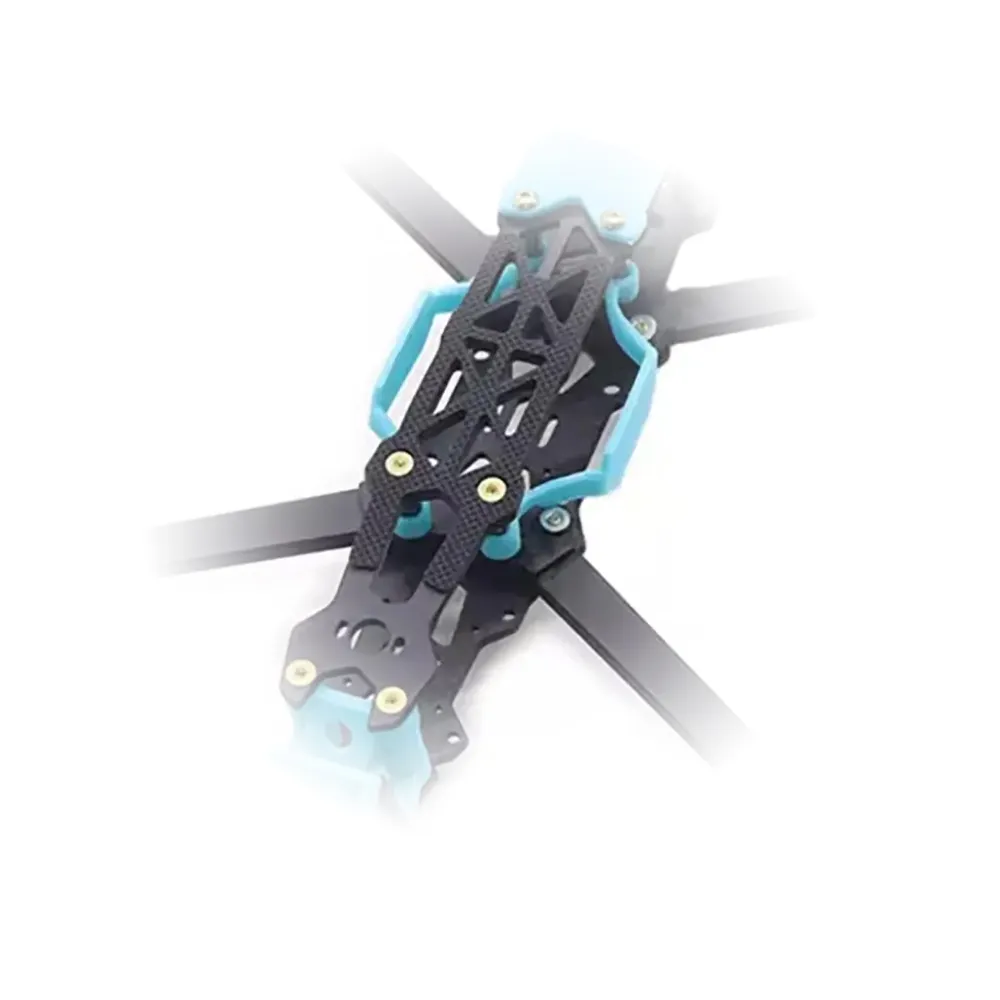

The Mak4 Freestyle Frame offers superior performance with its lightweight design and easy installation. Featuring an H-shape structure, it delivers stable flights with a lower center of gravity and more space for components. The frame supports 19mm width FPV cameras like Caddx Ratel 2 and accommodates various flight controllers with its flexible mounting options. Precision craftsmanship, including chamfered edges and reinforced aluminum tubes, ensures durability and strength, making it an ideal choice for smooth and elegant FPV shooting.
Features:
● Mak4 Freestyle Frame: Lighter, better performance, and easier to install.
● Smooth Flight: Easier and more elegant FPV shooting.
● H-Shape Structure: Does not affect the flight experience at all; instead, compared to the X-shape structure, the arms are shorter, lighter, and stronger.
● H-Shape Layout: Provides more installation space in the middle of the frame, with a lower center of gravity, resulting in more stable flights.
● FPV Camera Mount: Designed for 19mm width cameras, suitable for micro cameras like Caddx Ratel 2, Foxeer Micro, or RunCam Micro.
● Flight Controller Mounting: The front and rear sections have reserved mounting holes for both 30.5*30.5mm and 20*20mm, accommodating various flight controller setups.
● Motor Mounting Holes: Compatible with 16*16mm, 16*19mm, and 19*19mm motor mounting patterns.
● High-Quality Craftsmanship: All edges of the frame are chamfered for precision and a reasonable structure, with customized thickened aluminum tubes ensuring the strength of the frame.
Specifications:
● Model: MAK4 5inch
● Recommend Propeller: 5inch
● Wheelbase: 225mm
● Frame Dimension: 145*172mm
● Weight: 105g
● Arm Thickness: 5mm
● Bottom Plate Thickness: 2.5mm
● Top Plate Thickness: 2.5mm
● Model: MAK4 6inch
● Recommend Propeller: 6inch
● Wheelbase: 260mm
● Frame Dimension: 162*203mm
● Weight: 112g
● Arm Thickness: 5mm
● Bottom Plate Thickness: 2.5mm
● Top Plate Thickness: 2.5mm
● Model: MAK4 7inch
● Recommend Propeller: 7inch
● Wheelbase: 295mm
● Frame Dimension: 193*223mm
● Weight: 128g
● Arm Thickness: 5mm
● Bottom Plate Thickness: 2.5mm
● Top Plate Thickness: 2.5mm
Product recommendation:
Package included:
● 1* Mak4 Freestyle Frame
